One of the great things about triking is how nice it is to have everything right at hand as you roll along. With a SeatSide mount, you can have all sorts of things close at hand. The ICE Main Frame SeatSide Mount lets you carry bags, water bottles, cameras, all sorts of things, right by your side. Snacks, phones, lip balm, you name it, now you can keep it all within reach while riding. This mount attaches to the main tube behind the seat. The mount comes out and forward to your side. The SeatSide arm can be attached on either side, or both if you wish. This mount can be used with both mesh seats and hardshell seats. It offers the quick on/off option which lets you quickly remove and reinstall the main mounting arm for folding. If you plan to go to a double sided mount in the future, order the OneBolt Release version for a super simple later upgrade.
FAQ
1. How does it work?

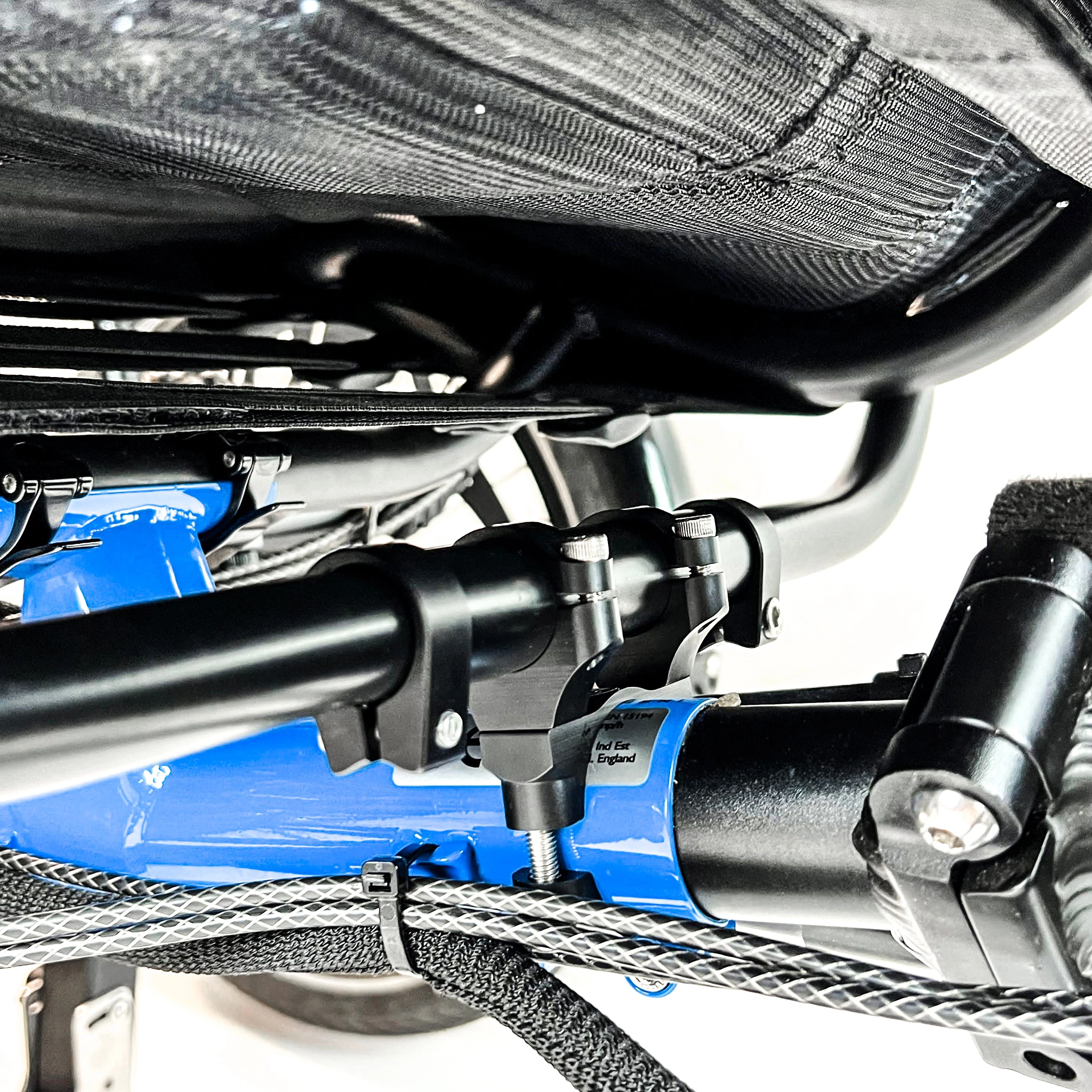

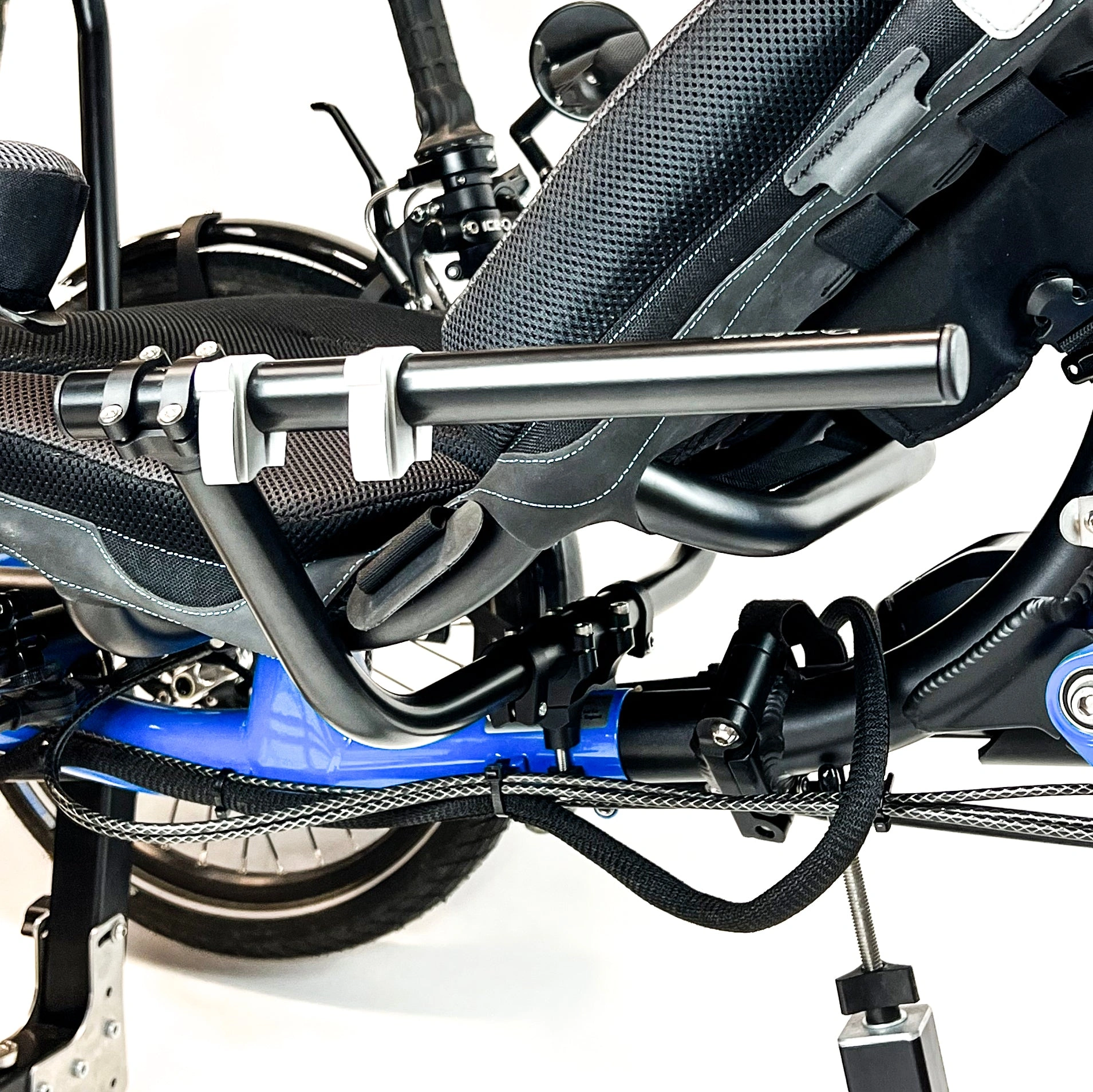

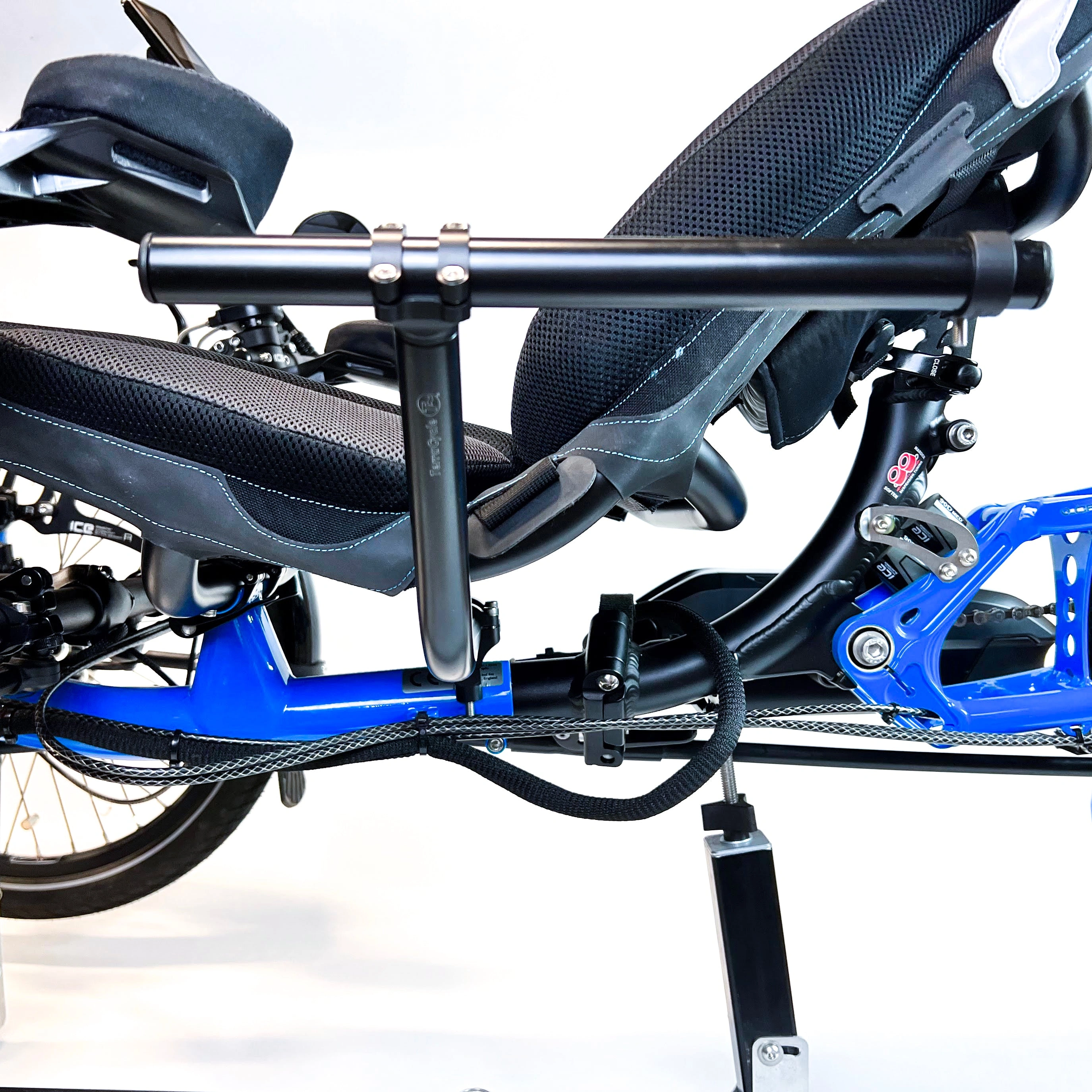

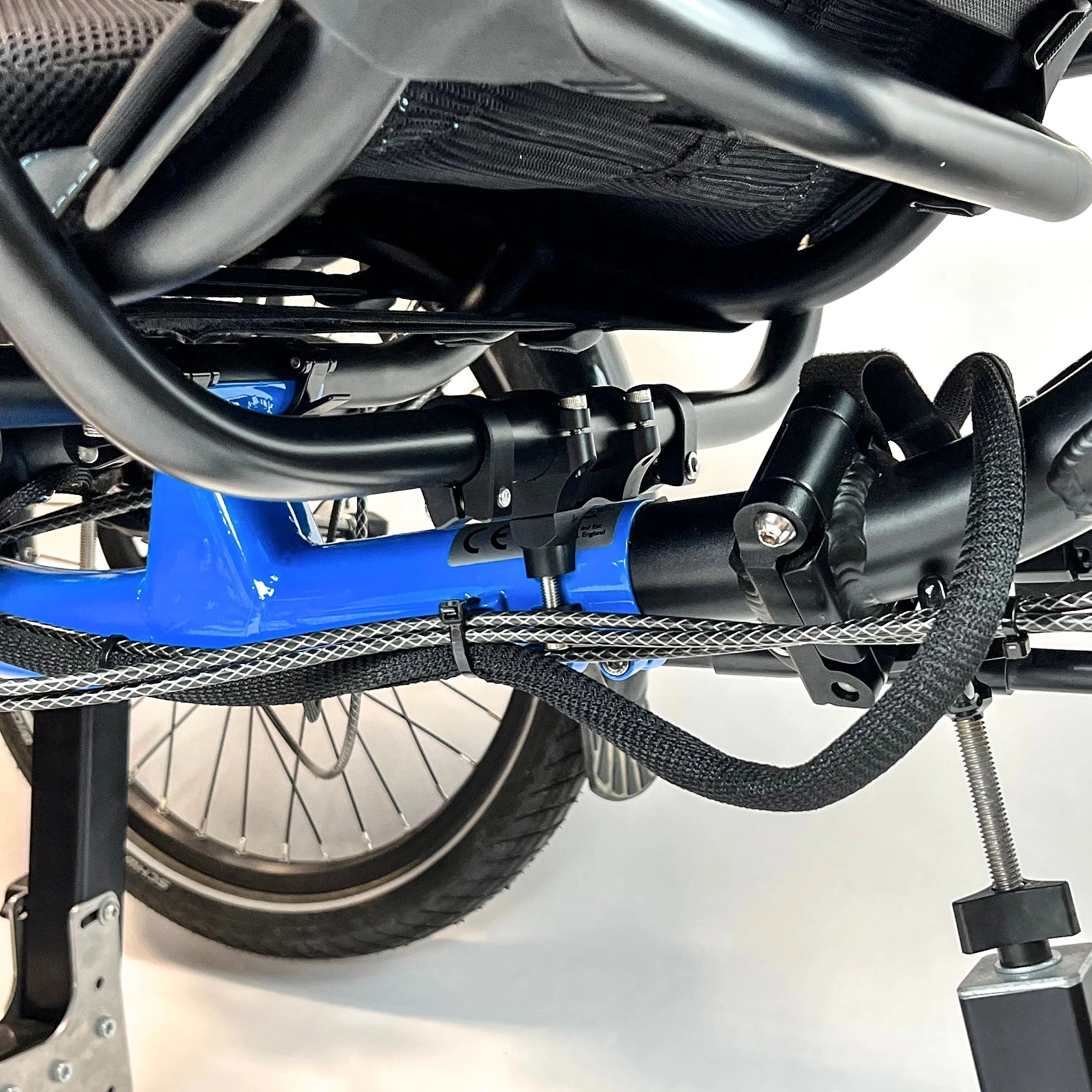

A specially machined clamp attaches near the rear of the main tube. Smaller clamps sideways on the frame clamp hold a support tube that comes out sideways and up from the main tube. The end of the support tube has a T clamp that holds a horizontal accessory mounting tube. The accessory mounting tube is long enough to hold whatever you'd like.
2. What is the advantage of this over the version that attaches to the seat frame?
There are two important advantages. First, since this version doesn't attach to the seat, it can be adjusted independently of the seat position. The seat mounted version moves along with the seat, so if you have the seat forward option, it may not be possible adjust it far enough back to avoid the wheel or handlebars. This frame mount version has more positional freedom, even if the seat is all the way forward. The second advantage is this version is available with the OneBolt release option, simplifying breakdown for folding or transport.
3. How adjustable is it?
Very. Since everything is clamped, not welded, you can adjust things up/down, in/out, and forward/back. If you want to really customize it, you can shorten any of the tubes, or even substitute another of a different size.
4. Which side does it go on?

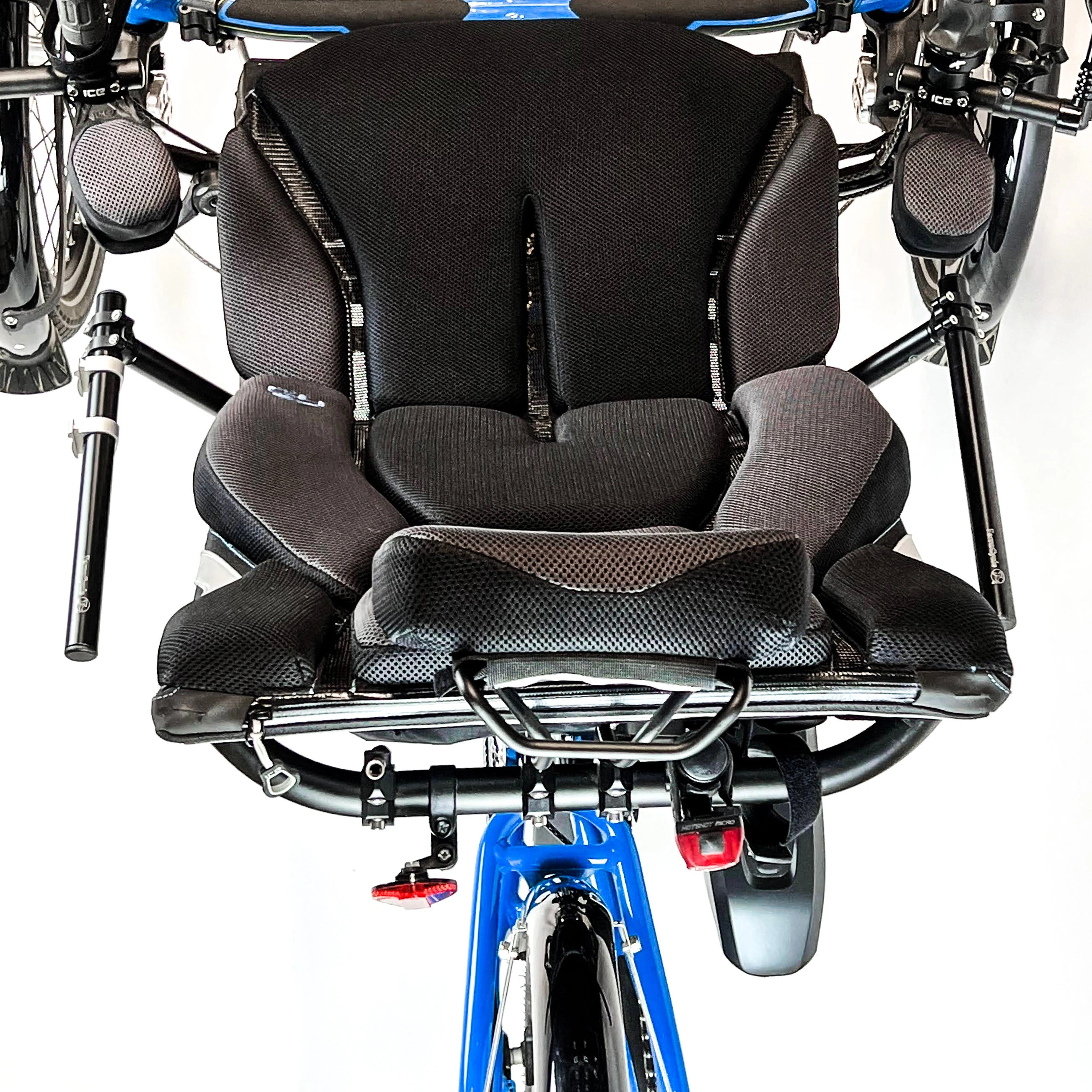

Either, or both, with the double sided option. It's up to you.
5. Will this work with a other trikes?
Yes, this mount will most likely work on other trikes with 1.75 inch round main tubes. We make a range of main tube clamp sizes, email us for more information about what's possible.
6. What can you put on it?

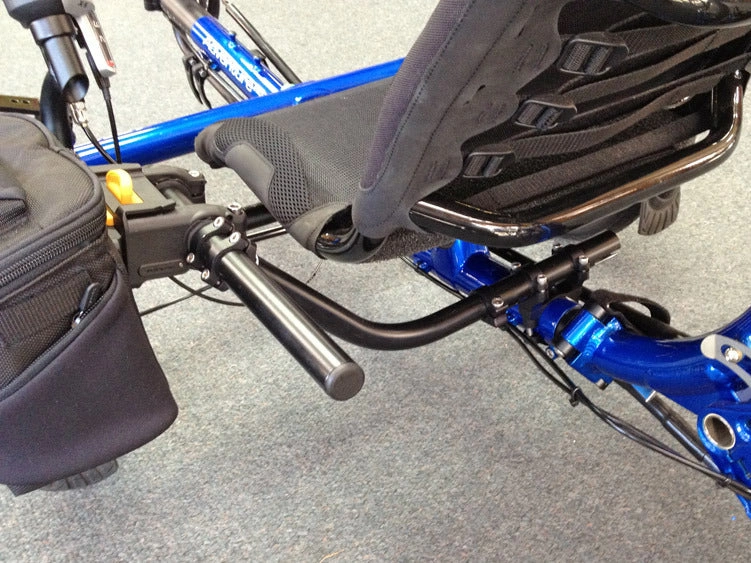

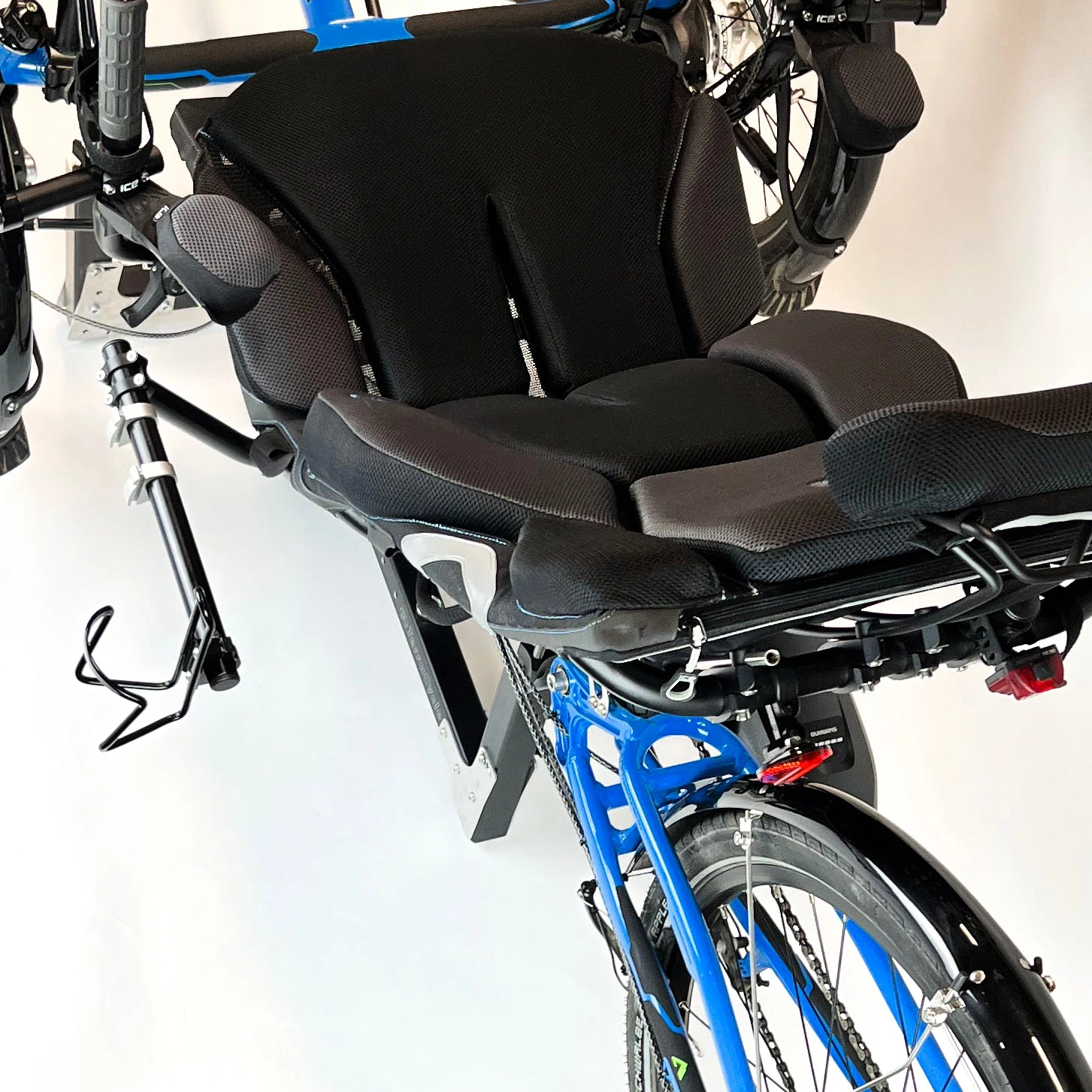

Anything that you can attach to a standard 7/8in (22.2mm, standard handlebar size) tube. So, most anything that's made to be mounted to a bike. Most people attach handlebar bags, water bottles, phones, things like that. The supplied accessory mounting tube is 11 inches (28cm) long, so you have lots of room.
7. How much weight can it hold?
A lot, but obviously it has it's limits. We're saying 10lbs (4.5kg) to be on the safe side. We do recommend that if you want to carry living things (like pets) that you do so carefully.
INSTALLATION INSTRUCTIONS
- The mount can be set up on the left side, the right side, or both sides.

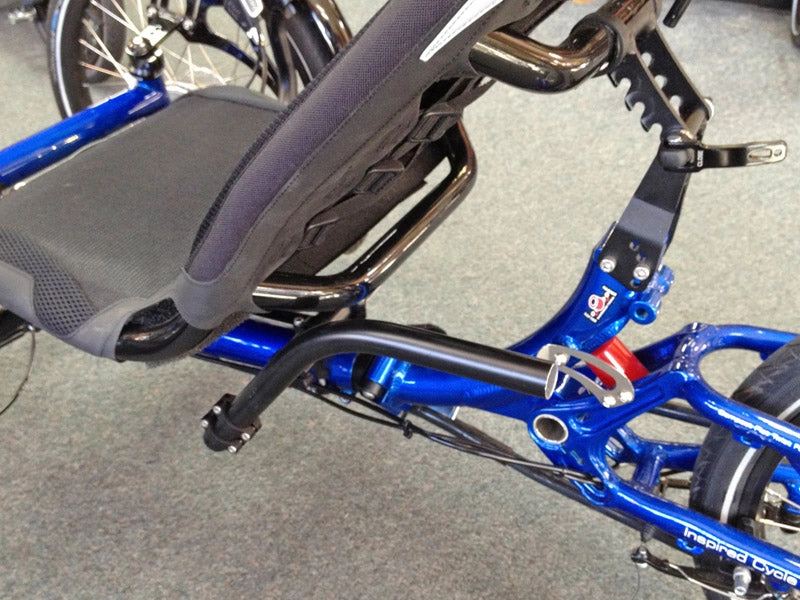

- Attach the frame clamp to the main tube near the back.
- Insert the support tube into the sideways clamps on the frame clamp.
- Insert the accessory mounting tube into the T-clamp, then sit in the seat and decide where you'd like the accessory mounting tube to be.
- Tighten all of the clamps, you're ready to go!
ADDITIONAL INFO

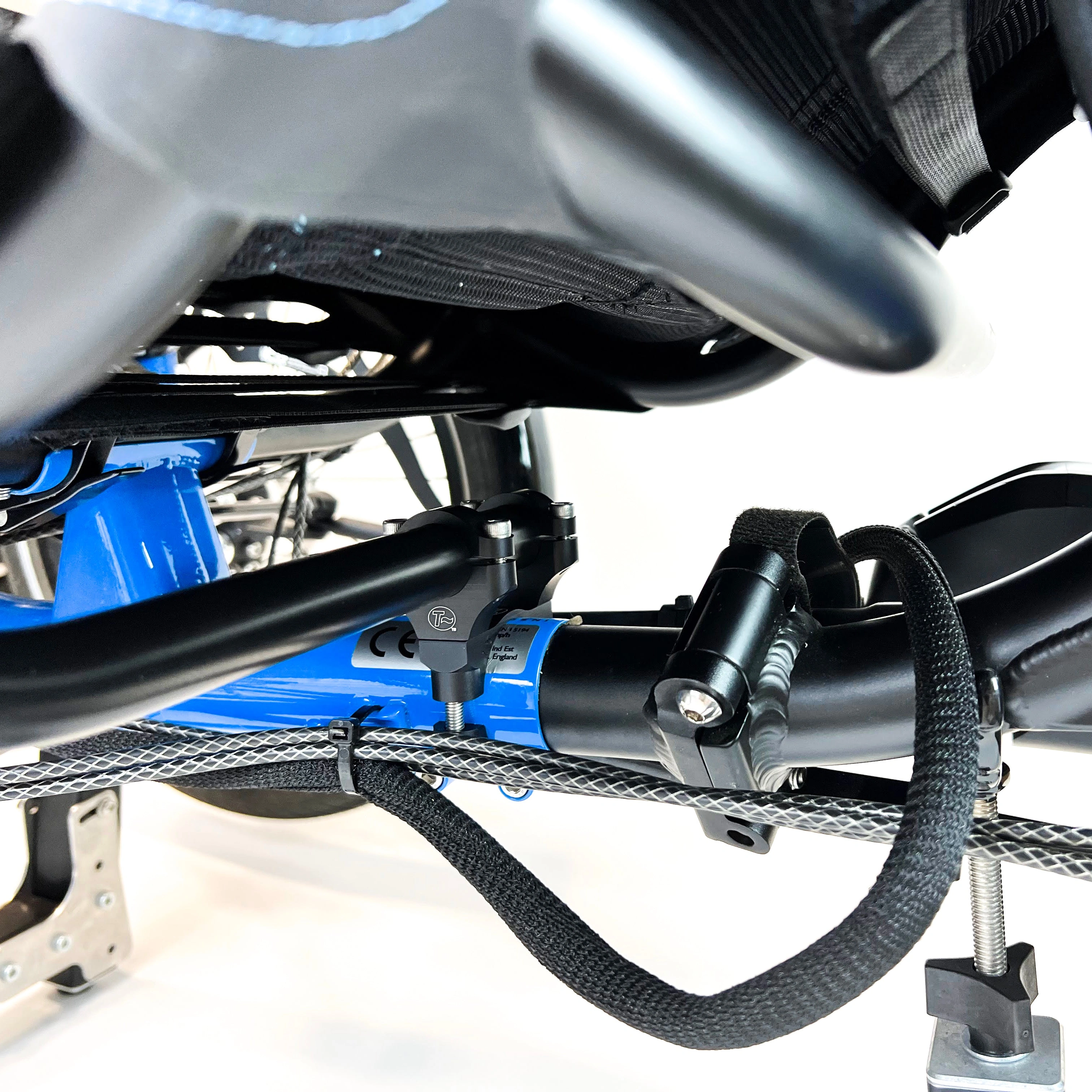

- The OneBolt Release option allows you to quickly and easily remove nearly everything for folding and/or transport. With 1-2 turns on a single collar clamp bolt, the main pieces slide out, leaving only the frame clamp and a short tube left on the trike. Reinstalling is just as easy, just slide the main part of the mount back in and tighten the one bolt. The OneBolt Release option replaces the Y-clamps that hold the support tube to the Frame Clamp with larger ones and adds an intermediate slotted tube with a collar clamp. The intermediate tube is slotted at both ends to enable the double sided option.
- The double sided option shares the frame clamp and intermediate tube, and adds another collar clamp, sideways support tube, T-clamp, and accessory mounting tube. That's why when you pick the double sided option, you automatically get the OneBolt Release.
- We include a user installed catchpost in case you want to use a handlebar bag that is designed to index to the handlebar stem on an upright bike. Some handlebar bags have a cable or an arm that is designed to catch on a handlebar stem to keep the bag from rotating down. The catchpost provides a place for that to connect.
- We make a lot of tubes and clamps that are compatible with this system if you need to do customizations. Check out the SeatSide Mount Hardware and Cockpit Mount Hardware pages for more information.
- Clamps are CNC machined aluminum, anodized black, with all stainless fasteners. Tubes are black powder coated aluminum with removable black end caps.
- Fits most ICE and Trice trikes. Email us if you have any questions about your particular trike.
